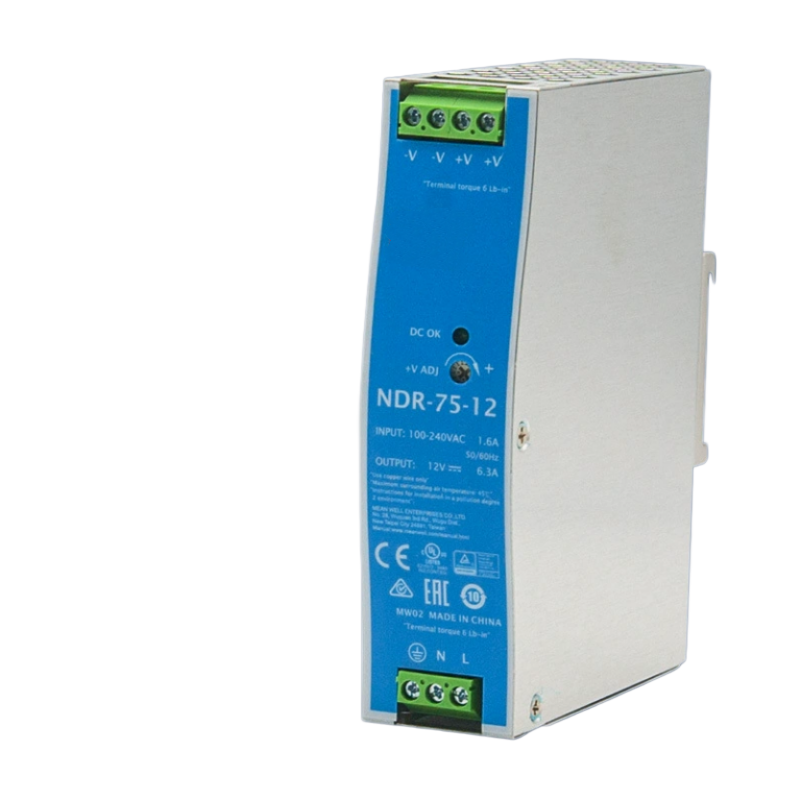

Relipowertech DIN Rail Power Supplies 75W （NDR-75 Series）

Relipowertech DIN Rail Power Supplies 75W （NDR-75 Series） - Image 2

Relipowertech DIN Rail Power Supplies 75W （NDR-75 Series）

AC-DC Single output Industrial DIN rail power supply; ranges from 75~480W, 90~264VAC; output voltage ranges from 12~48V; metal case

customization Ability

Onput Voltage

Output Current

Clear

Share

NDR-75 Series Features:

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be instaled on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN500082-2) Industrial immunity level
100% full load burn-in test
3 years warranty

Spec	NDR-75-12	NDR-75-24	NDR-75-48
Wattage	75.6	76.8	76.8
Input Voltage	90-264VAC	90-264VAC	90-264VAC
Output Current	6.3A	3.2A	1.6A
Output Voltage	12	24	48
Output Voltage Options	Single	Single	Single
Dimensions	32x 125.2x 103	32x 125.2x 104	32x 125.2x 105
Working Temperature	-20-+70°C
Safety Standards	UL508, TUV EN60950-1 approved
EMC Standards	Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A

Additional information

Weight	16 kg
Onput Voltage	12V/24V/48V
Output Current	6.3A//3.2A/1.6A
