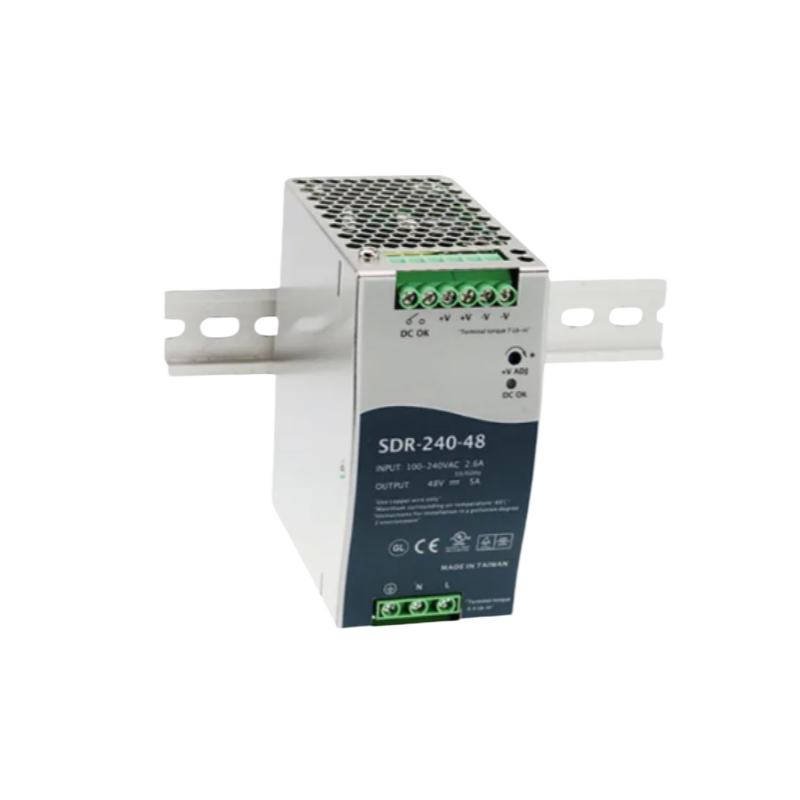

AC-DC Single output Industrial DIN rail power supply; ranges from 75~480W, 90~264VAC; output voltage ranges from 12~48V; metal case
Built-in active PFC function, PF>0.93
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Share
| Spec | SDR-240-24 | SDR-240-48 |
| Wattage | 240 | 240 |
| Input Voltage | 88~264VAC, 124~370VDC | 88~264VAC, 124~370VDC |
| Output Current | 0~10 | 0~5 |
| Output Voltage | 24 | 48 |
| Output Voltage Options | Single | Single |
| DC output adjustment | 24~28V | 48~55V |
| Dimensions | 63 x 125.2 x 113.5 | 63 x 125.2 x 113.5 |
| Working Temperature | -25~+70°C | |
| Safety Standards | UL508, TUV EN60950-1, GL approved | |
| EMC Standards | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, Heavy industry level, SEMI F47, GL | |
| Weight | 16 kg |
|---|---|
| Onput Voltage | 24V/48V |
| Output Current | 10A/5A |
