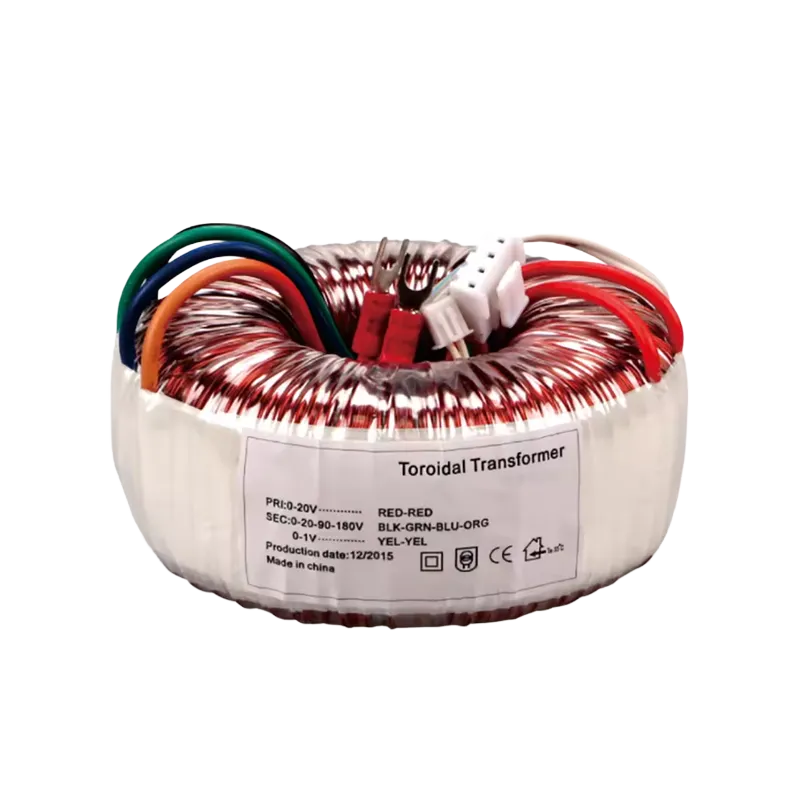

Relipowertech 120VA Toroidal Transformer for Audio Amplifier, 110V to 12V

Relipowertech 120VA Toroidal Transformer for Audio Amplifier, 110V to 12V - Image 2

Relipowertech 120VA Toroidal Transformer for Audio Amplifier, 110V to 12V

All copper toroidal transformer for audio power amplifier, with 120VA rated power, single phase, small in size and weight, is designed for converting AC supply voltages to one or more AC voltages, for example, 110V to 12V or 230V to 2 x 24V (24-0-24), other voltages are available for choice.

customization Ability

Primary Voltage (AC)

Secondary Voltage (AC)

Clear

High efficiency and lower cost 120VA toroidal transformer for audio amplifier, with a single input of 110V AC and an output of 12V, double outputs are available and customizable, manufactured, and tested in compliance with CE, RoHS, and ISO standards.

Advantages of Relipower Toroidal Transformer

High Efficiency: Winding matches the core perfectly, which makes the transformer more efficient.
Long Service Life: With high-quality materials and manufacturing technology, the transformer can be used for 30 years.
Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.
Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.
Low Temperature Rise: Even if it is overloaded at 120%, the temperature rise will be less than 70℃.

120VA Toroidal Transformer Specifications

Model	RELI-T-C120VA
Phase	Single phase
Power	120VA (120W)
Primary Voltage	110V AC (Optional: 110V, 120V, 220V, 230V, 240V)
Secondary Voltage	12V AC (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized) *Note:* For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.
Secondary Current	10A
No. of Inputs	1 input
No. of Outputs	1 output (4-wire 2 outputs are available)
Frequency	50Hz/60Hz
Winding Material	Copper Wire
Coil Structure	Toroidal
Efficiency	90%-96%
No-load Loss	<2.5W
Input Wire	UL1672-18#Red
Output Wire	UL1015-16#Blue, Black, Orange, Green
Voltage Strength	DC2500V
Insulation Impedance	≥500MΩ
Cooling Method	Natural air cooling
Temperature	+40℃
Certification	CE, RoHS, ISO
Warranty	12 months
External Diameter	105mm
Height	47mm
Pedestal	100*100mm
Mounting Hole Distance	90*90mm
Weight	2.3kg
Package Included	1Toroidal transformer + 1Accesorries sets (Nut, Shim, Metal disk, Rubber gasket, Pedestal, Screw)
