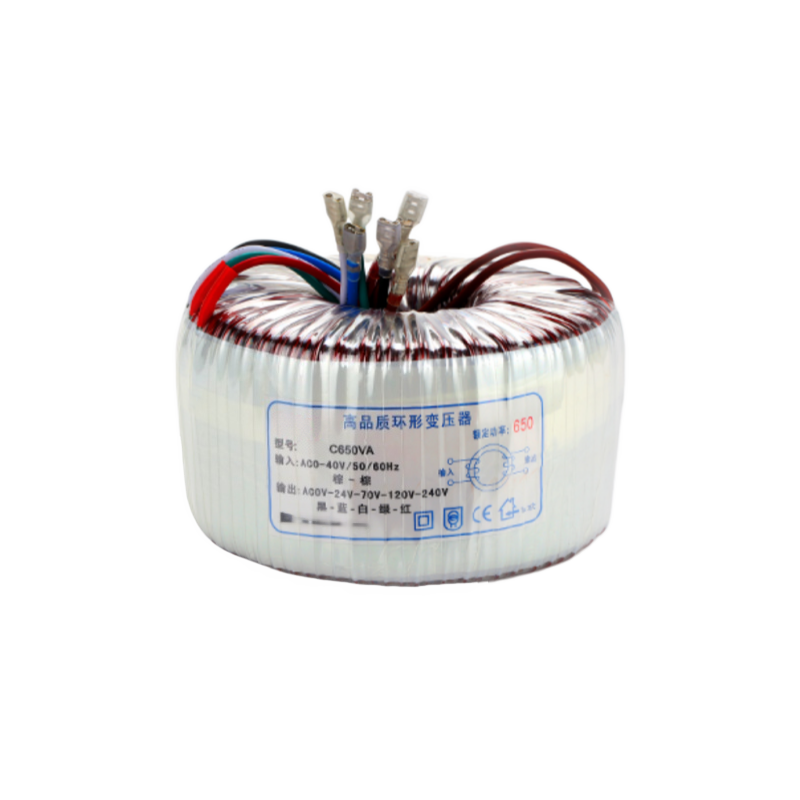

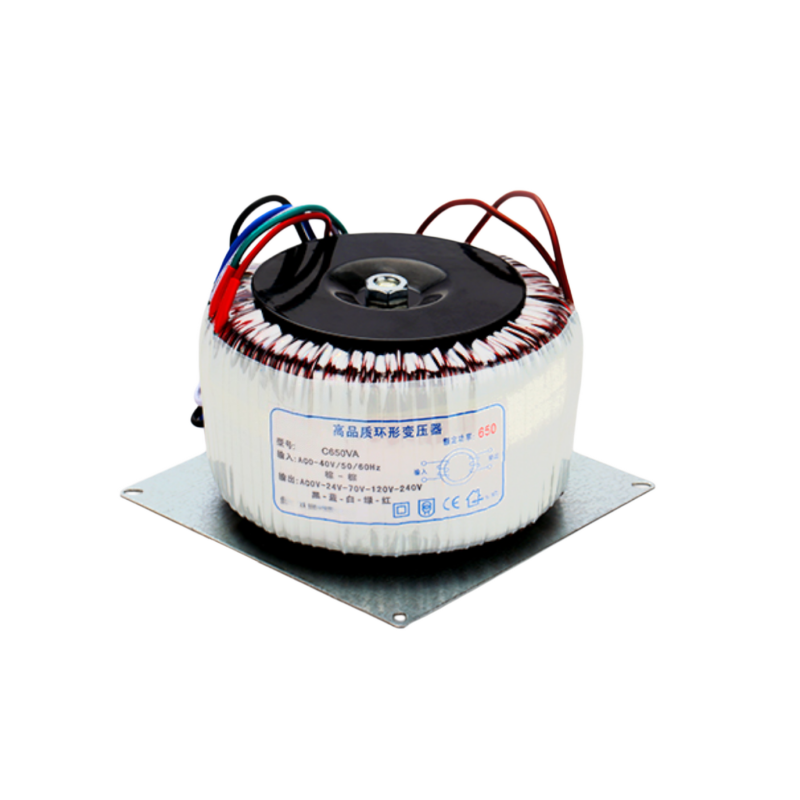

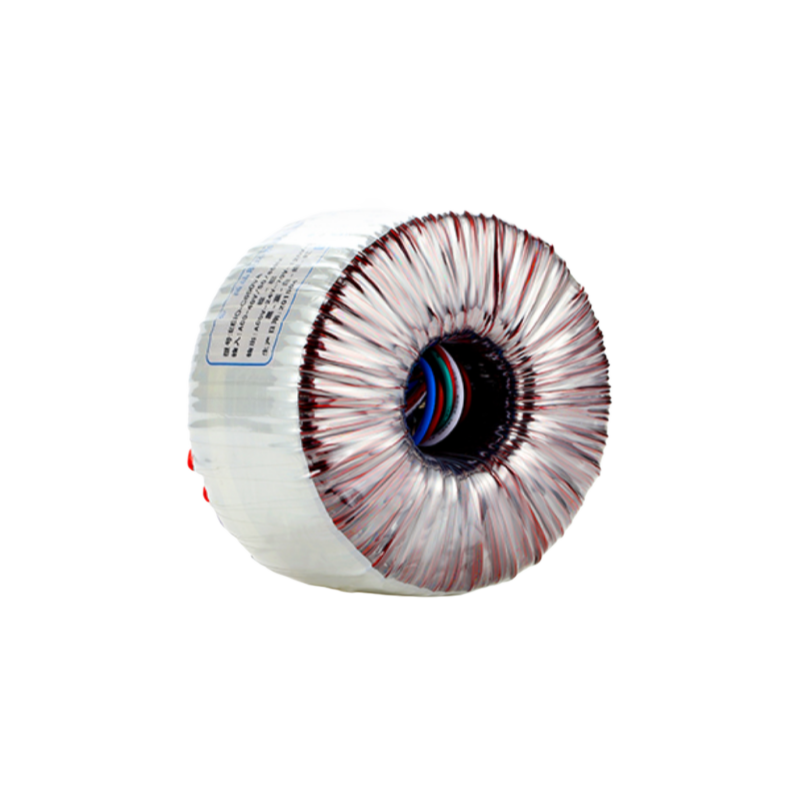

Relipowertech 600VA Toroidal Transformer, 240V AC to 12V/24V

Relipowertech 600VA Toroidal Transformer, 240V AC to 12V/24V

600VA (600W) full power toroidal transformer is a single phase general purpose transformer with a primary voltage of 240 V AC and a secondary voltages of 12V/24V, dual outputs versions like 30-0-30V, 40-0-40V are avalible. It offers a significant size and weight reducation as well as low cost and high reliability.

customization Ability

Primary Voltage (AC)

Secondary Voltage (AC)

Clear

Customized step up or step down toroidal transformers with 600VA capacity, 1-phase, a single 240V/50-60Hz primary winding, 12V/ 24V/ 2x50V AC secondary winding for selecting, manufactured, and tested in compliance with CE, RoHS, ISO standards.

Advantages of Relipower Toroidal Transformer

High Efficiency: Winding matches the core perfectly, which makes the transformer more efficient.
Long Service Life: With high-quality materials and manufacturing technology, the transformer can be used for 30 years.
Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.
Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.
Low Temperature Rise: Even if it is overloaded at 120%, the temperature rise will be less than 70℃.

Relipower 600VA Toroidal Transformer Specifications

Model	RELI-T-C600VA
Phase	Single phase
Power	600VA (600W)
Primary Voltage	240V AC (Optional: 110V, 120V, 220V, 230V, 240V)
Secondary Voltage	12V AC (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized)
Secondary Current	12.5A
No. of Inputs	1 input
No. of Outputs	1 output, 4-wire (4-wire 2 outputs are available) *Note:* For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.
Frequency	50Hz/60Hz
Winding Material	Copper Wire
Coil Structure	Toroidal
Efficiency	90%-96%
No-load Loss	<3.77W
Input Wire	UL1672-18#Red
Output Wire	UL1015-16#Brown
Voltage Strength	DC2500V
Insulation Impedance	≥500MΩ
Cooling Method	Natural air cooling
Temperature	+40℃
Certification	CE, RoHS, ISO
Warranty	12 months
External Diameter	141mm
Height	66mm
Pedestal	140*140mm
Mounting Hole Distance	130*130mm
Weight	5.5kg
Package Included	1Toroidal transformer + 1Accesorries sets (Nut, Shim, Metal disk, Rubber gasket, Pedestal, Screw)
