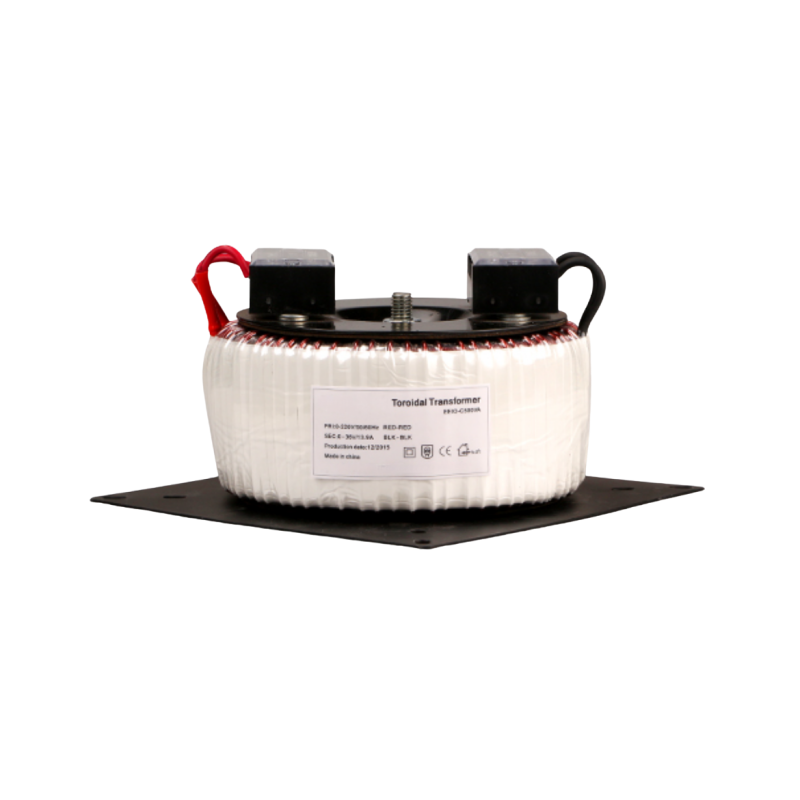

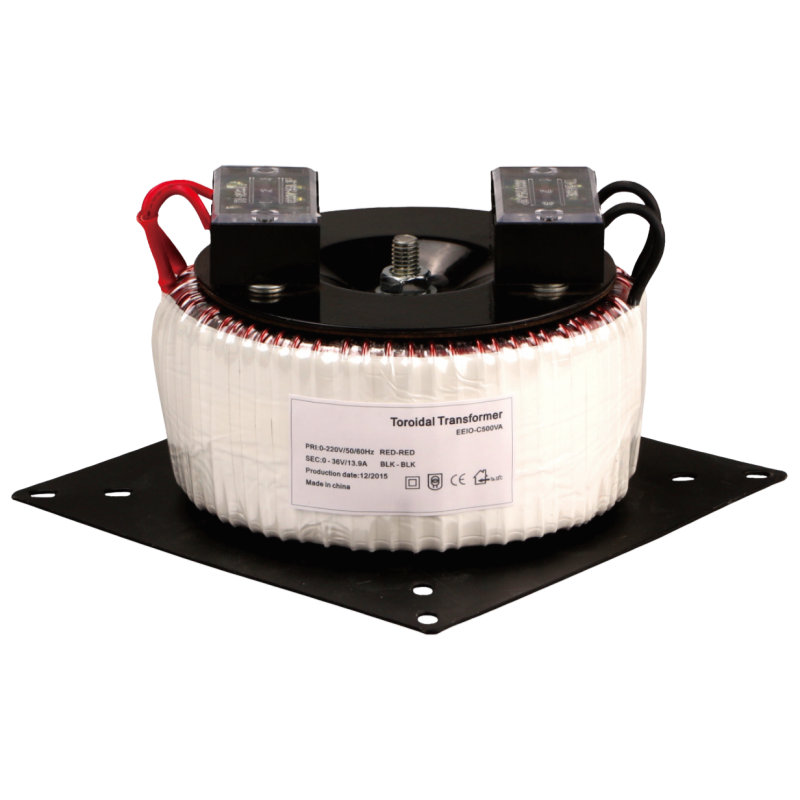

Relipowertech 500W Transformer 220V to 36V with TB Terminal Block – BK Series

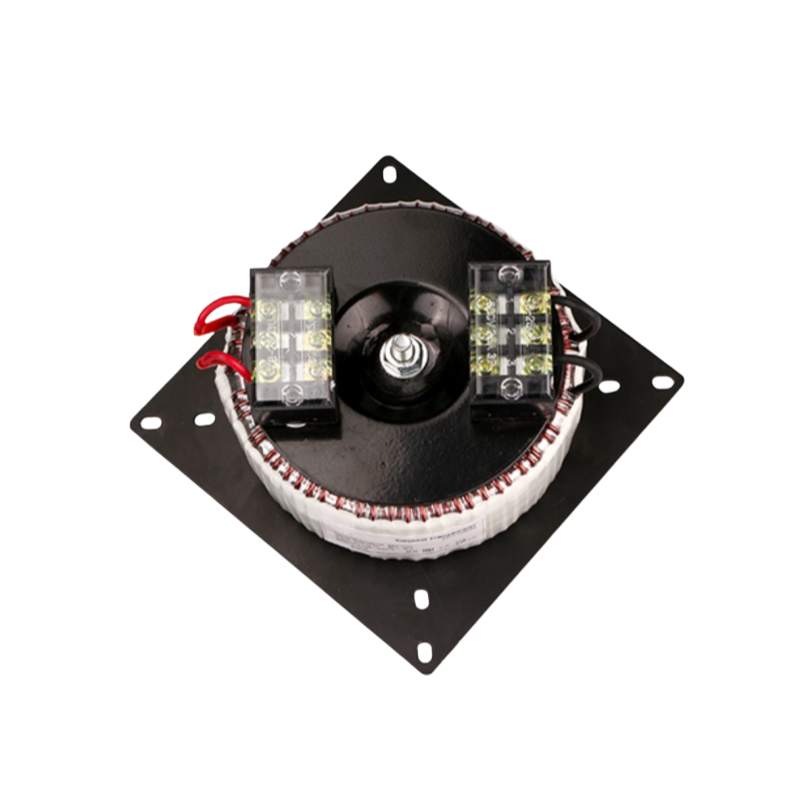

Relipowertech 500W Transformer 220V to 36V with TB Terminal Block – BK Series - Image 2

Relipowertech 500W Transformer 220V to 36V with TB Terminal Block – BK Series

Rated Power:500W（MAX)

Input Voltage:AC 220V ± 10%

Frequency:50Hz/60Hz (45-60Hz)

No Load Voltage:AC 36V±2%

Full Loading Current:13.9A（MAX）

customization Ability

Toroidal power transformer are widely used in various fields，It has many advantages, such as large lead space, wide application range, high working frequency, large working voltage range, large output power and good thermal stability.Toroidal power transformers are generally suitable for power transfer and voltage or current conversion in circuits. As a major soft magnetic electromagnetic component, they are widely used in power technology and power electronics. There are isolation transformer, auto transformer, lighting transformer, etc. It can also be used for special purposes, such as mutual inductor, and transformers can be designed and produced according to customer requirements.

Key Attributes

Long-life	High-silicon iron core + fully copper-wound	Full Loading Power	500W(MAX)
Energy-conserving	Lower no-load standby power consumption	Iput Voltage	AC 220V ± 10%
High efficiency	Higher energy conversion efficiency	Frequency	50Hz/60Hz (45-60Hz)
low temperature	Can start and operate normally at minus 30°C .	No Load Voltage	AC 36V±2%
No radiation	Zero high-frequency electromagnetic radiation	Full Loading Current	13.9A（MAX）
No noise	Lower operating noise	No Load iron loss	< 4.5W
High standard	Double-insulated enameled wire winding	Hi-Pot Test	Pri-Sec:DC2500V
High quality	Standardized winding processes and soldering standards	Insulation Resistance	Pri-Sec:≥500MΩ
Product volume	133m51mm63mm	Temperature Protection	With (self-resetting thermostat)
Pri wire	UL1672-18# Red	Over Current Protection	/
Sec wire1	UL1015-16# Black	Base Plate	Baked Black Lacquer (Standard)/ Galvanized (optional)/ Copper Glaze (Optional)
Mounting plate	140*140mm	Magnetic Shield	/
Hole distance	130*130mm	Electrostatic Shield resin	/
Pore size	5*8mm（Oval hole）	Filled epoxy	/
Weight	4.6kg	Quantity	4/pcs
