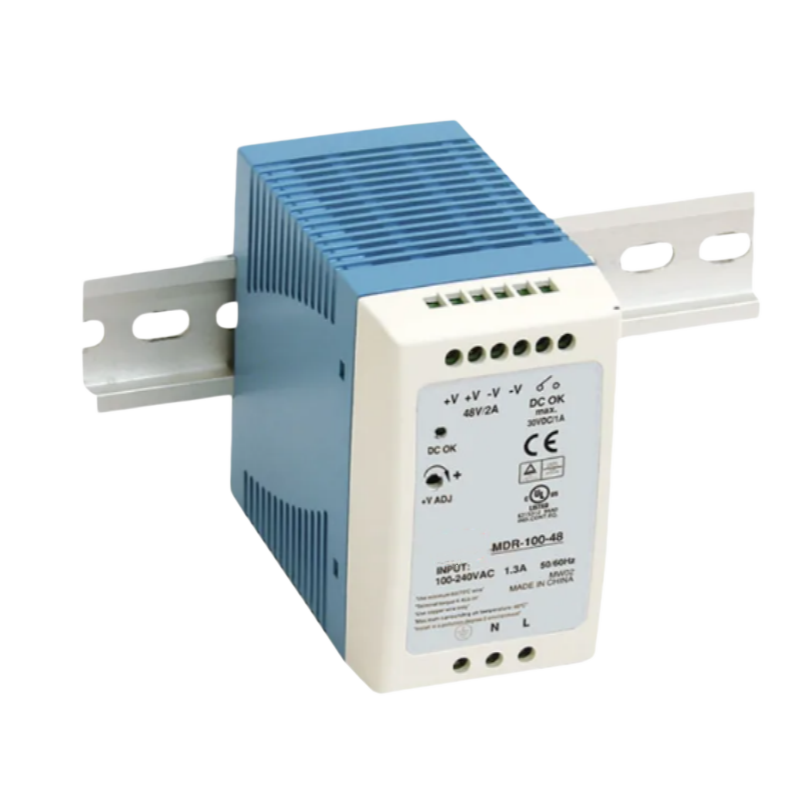

The whole range of Relipowetech DIN rail power supplies are designed to fit DIN rail TS-35/7.5 or 15 and have been built with short circuit, overload, over voltage and over temperature protections as standard. Our DIN rail power supplies have worldwide approvals of UL, CUL, TUV and CE offer universal inputs and come with a 3-year warranty as standard.
Specifications
| Spec | MDR-100-12 | MDR-100-24 | MDR-100-48 |
| Wattage | 90 | 96 | 96 |
| Input Voltage | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC |
| Output Current | 0~0.84 | 0~4.0 | 0~2.0 |
| Output Voltage | 12 | 24 | 48 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | 12~15V | 24~30V | 48~56V |
| Dimensions | 55 x 90 x 100 | 55 x 90 x 100 | 55 x 90 x 100 |
| Working Temperature | 0~+65°C | ||
| Safety Standards | UL508, TUV EN60950-1, approved | ||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level | ||
| Weight | 16 kg |
|---|---|
| Output Current | 0.84A/4A/2A |
| Output Voltage | 12V/24V/48V |
