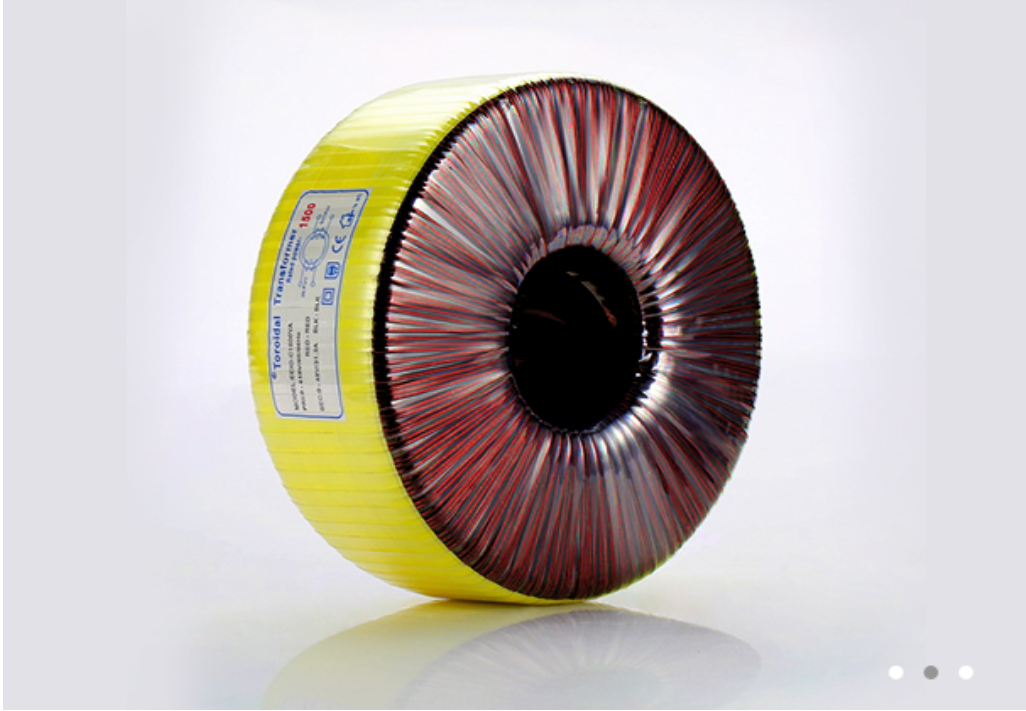

Relipowertech 1500VA Toroidal Transformer, 230V to 12-0-12V/24V

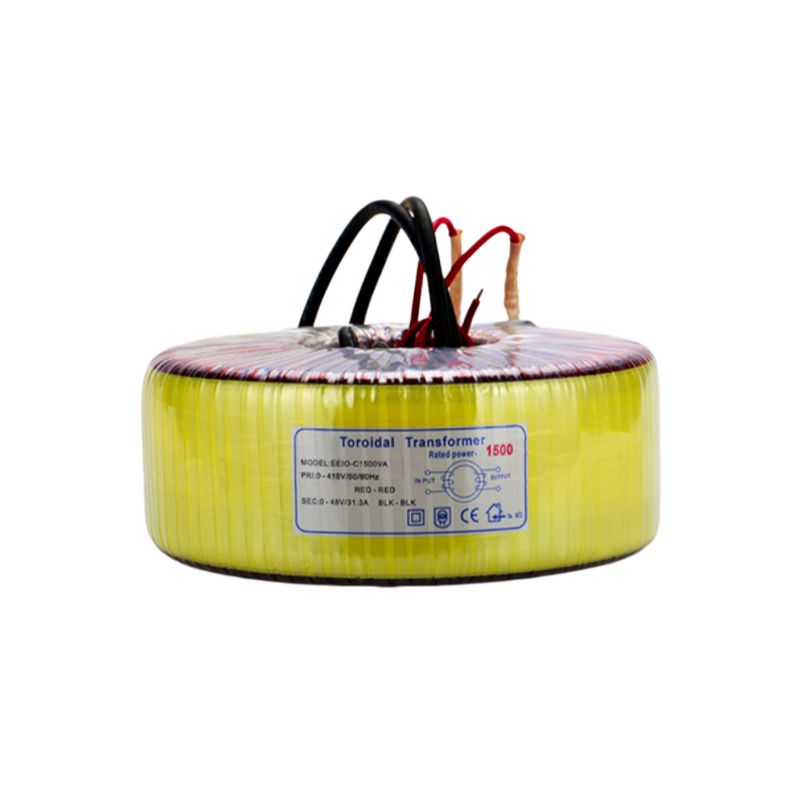

Relipowertech 1500VA Toroidal Transformer, 230V to 12-0-12V/24V - Image 2

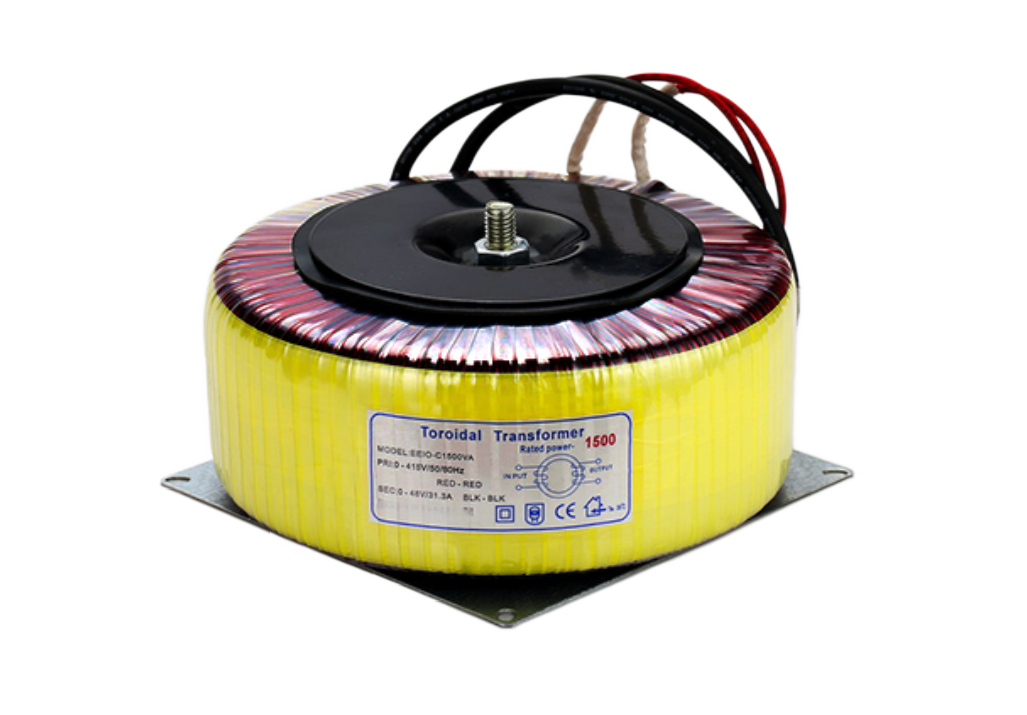

Relipowertech 1500VA Toroidal Transformer, 230V to 12-0-12V/24V

Relipower 1-phase isolated toroidal transformer with 1500 full capacity, 230V AC primary voltage to 12-0-12V/24V secondary voltage, small size and lightweight, has been widely used in household appliances and other electronic equipment with high technical requirements.

customization Ability

Primary Voltage (AC)

Secondary Voltage (AC)

Clear

Relipower 1500VA toroidal transformer is single phase, step down input voltage 230V AC to double output voltage 2x12V or single output voltage 24V, input/output voltage can be customized as your requirement. It features high insulation strength, CE recognition, less noise, and long life.

Advantages of Relipower Toroidal Transformer

High Efficiency: Winding matches the core perfectly, which makes the transformer more efficient.
Long Service Life: With high-quality materials and manufacturing technology, the transformer can be used for 30 years.
Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.
Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.
Low Temperature Rise: Even if it is overloaded at 120%, the temperature rise will be less than 70℃.

1500VA Toroidal Transformer Specifications

Model	RELI-T-C1500VA
Phase	Single phase
Power	1500VA (1500W)
Primary Voltage	230V AC (Optional: 110V, 120V, 220V, 230V, 240V)
Secondary Voltage	2x12V (12-0-12) (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized)
Secondary Current	62.5A each winding
No. of Inputs	1 input
No. of Outputs	2 outputs, 4-wire (1 output is available) *Note:* For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.
Frequency	50Hz/60Hz
Winding Material	Copper Wire
Coil Structure	Toroidal
Efficiency	90%-96%
No-load Loss	<5.23W
Voltage Strength	DC2500V
Insulation Impedance	≥500MΩ
Cooling Method	Natural air cooling
Temperature	+40℃
Certification	CE, RoHS, ISO
Warranty	12 months
External Diameter	193mm
Height	80mm
Pedestal	170*170mm
Mounting Hole Distance	150*150mm
Weight	13kg
Package Included	1Toroidal transformer + 1Accesorries sets (Nut, Shim, Metal disk, Rubber gasket, Pedestal, Screw)
